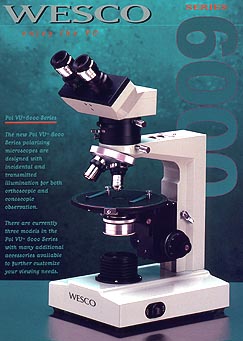

WESCO Pol VU 6000 Series
Polarizing Microscopes
The Pol VU 6000 Series polarizing microscopes are designed
with incidental and transmitted illumination for both orthoscopic and conoscopic
observation. There are currently three models in the Pol VU 6000 Series with many
additional accessories available to further customize your viewing needs. |
SPECIFICATIONS |
POL VU 6000
MODELS |
6100 |
6200 |
6300 |
45 degree monocular observation body |
- |
- |
45 degree binocular observation body |
- |
- |
45 degree trinocular observation body |
- |
- |
EWF10X high eyepoint widefield eyepiece |
- |
EWF10X high eyepoint widefield eyepiece with focusing cross-hair |
Polarizing intermediate attachment with 1.2X swing-in/swing-out
analyzer, built-in Bertrand lens unit on rotating turret for conoscopy, DIN standard
compensator slot, 20 x 6mm |
Quadruple revolving nosepiece with centering mounts |
PO achromatic M5X, M10X and M40X objectives |
150mm circular graduated stage with 1 degree increments and vernier
reading to 5 degrees, locking clamp for stage rotation, two stage clips |
Coaxial coarse and fine focusing with 35mm coarse range and 1.4mm fine
range of focus |
Fully rotatable polarizer on strain free N.A. 1.25 Abbe condenser,
polarizer graduated every 45 degrees and marked 0.90, 180 and 270, click stop at position
"0" can be fine adjusted |
Transmitted and incidental 6 volt 20 watt halogen illumination with
variable light control, field and aperture diaphragm for Koehler-type illumination with
polarizer rotatable to 90 degrees |
1st order red sensitive tint plate, 1/4 wavelength retardation plate |
OPTIONS |
PO achromatic M20X objective |
Focusing eyepiece EWF 10X with micrometer |
Attachable mechanical stage |
