Peacock Dial Calipers



Labtek is the authorized North American dealer/distributor of Peacock Dial & Digital Indicators, Gauges and Calipers.  All Peacock products conform to ISO specifications and are tested to provide the highest quality and accuracy available.

For more information on a product or to request a price quote, please contact us by phone at 877-837-7260 (toll free) or 408-871-7700, fax 408-871-7800, or email us at labtekdiv@labtek.net.



bullet Peacock LA Series (Outside Measuring of OD & Thickness)



Model Graduation (mm) Range (mm) Throat Depth (mm) Dimensions (mm)
H1 H2 H3 H4
LA-1 0.1 0~80 120 25 40 25 40
LA-2 0.1 0~80 240 48 57 48 57

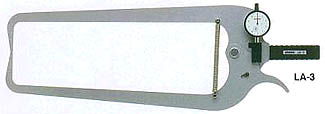

LA-3 0.1 0~80 400 60 60 58 79
LA-4 0.05 0~50 90 30 40 30 40
LA-5 0.05 0~50 150 38 57 15 21
LA-5S 0.05 0~10 120 1.5 10 34 34



Model Graduation (mm) Range (mm) Throat Depth (mm) Dimensions (mm)
H1 H2 H3 H4
LA-6 0.01 0~10 60 2.5 18 2.5 18
LA-7 0.01 0~60 85 20 20 15 15
LA-8 0.1 0~80 130 - - - -
LA-9 0.1 0~30 100 2 12 2 12
LA-10 0.01 0~20 100 28 28 28 28

Model Graduation (mm) Range (mm) Throat Depth (mm) Dimensions (mm)
H1 H2 H3 H4
LA-11 0.1 0~50 125 2 5.5 2 5.5
LA-13 0.1 0~130 235 134 134 15 37
LA-14 0.01 100~150 70 - - - -
LA-20 0.1 0~80 125 17 11 17 11
LA-21 0.1 0~80 220 66 69 12 10

Model Graduation (mm) Range (mm) Throat Depth (mm) Dimensions (mm)
H1 H2 H3 H4
LA-22 0.1 0~80 250 28 23 62 62
LA-23 0.1 0~80 300 45 50 48 43
LA-24 0.1 0~100 600 300 300 100 100
LA-31 0.01 0~20 150 60 63 - -

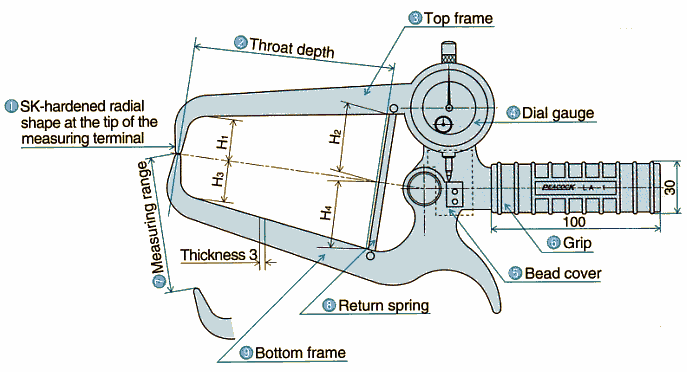

LA series ; Name of parts





bullet Peacock LB Series (Inside Measuring of ID & Groove Widths)





Model Graduation (mm) Range (mm) Throat Depth (mm) Height of Contact Point (mm)
LB-1 0.1 10~90 125 2
LB-2 0.1 10~90 180 2
LB-3 0.01 10~30 50 2
LB-4 0.01 10~30 100 2
LB-5 0.01 20~40 150 4
LB-6 0.01 30~50 80 4

Model Graduation (mm) Range (mm) Throat Depth (mm) Height of Contact Point (mm)
LB-7 0.01 10~70 85 2
LB-7S 0.01 15~35 50 3.5
LB-7V 0.01 35~85 30 6.5
LB-8 0.01 100~120 90 30
LB-9 0.01 20~40 130 2
LB-14 0.01 100~150 70 7
LH-2 0.01 10~120 50 2



For more information or a price quote, please contact Labtek at 408-871-7700, fax 408-871-7800, or email labtekdiv@labtek.net.
